Description

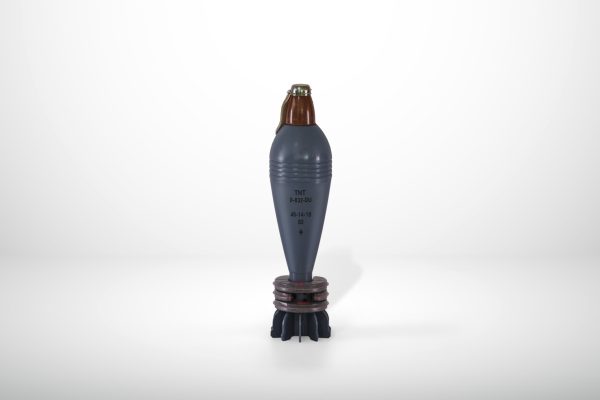

82 mm HE Mortar Bomb
Atlas International Group deliver and supply 82 mm HE mortar bombs. These are intended for firing from 82 mm mortars and are used in the destruction of open targets. This includes platoons of infantry, trenches, entrenchments and lightly-armoured vehicles.
Mortars that fire 82 mm HE mortar bombs are typically very light and easy to use. While considered medium-class mortars, they can be operated by smaller crews. They still boast a fantastic effective range and are brilliant at dealing with medium to long-range targets that are uncovered and exposed.
82 mm HE mortar bombs are an excellent addition to any artillery arsenal and come with a variety of different propellant charges for different optimal ranges.
Characteristics of the 82 mm Mortar Bomb
Calibre: 82 mm
Propellant charge: Fully changeable long-range 4D-2
Shell / mine weight: 31 kg
Muzzle velocity: 211 m/s
Maximum range (with long-range charge): 4500 m
Maximum range (with fully changeable charge): 3000 m
Fuse: M-6
Packing of the 82 mm Mortar Bomb
Rounds
- 10 pcs in a wooden case
- Case dimensions: 538 x 535 x 282 mm
- Gross weight: 45 kg
- Volume: 0.081 m3
Fuses
- 100 pcs in a wooden case
- Case dimensions: 510 x 480 x 180 mm
- Gross weight: 28 kg
- Volume: 0.044 m3
Propellant charge in a hermetic box, in a wooden case
Fully changeable – I Version
- 500 pcs in a wooden case
- Case dimensions: 520 x 520 x 590 mm
- Gross weight: 59 kg
Fully changeable – II Version
- 450 pcs in a wooden case
- Case dimensions: 520 x 520 x 710 mm
- Gross weight: 54 kg
Long-Range
- 240 pcs in a wooden case
- Case dimensions: 537 x 537 x 602 mm
Partial List of Compatible Modern 82 mm Mortars
- 2B14 Podnos
- 82-BM-37
- M37 Mortar
- Type 53 (Chinese production M37)
- M1937
- 82 KRH/41
- PM-37
- M82
